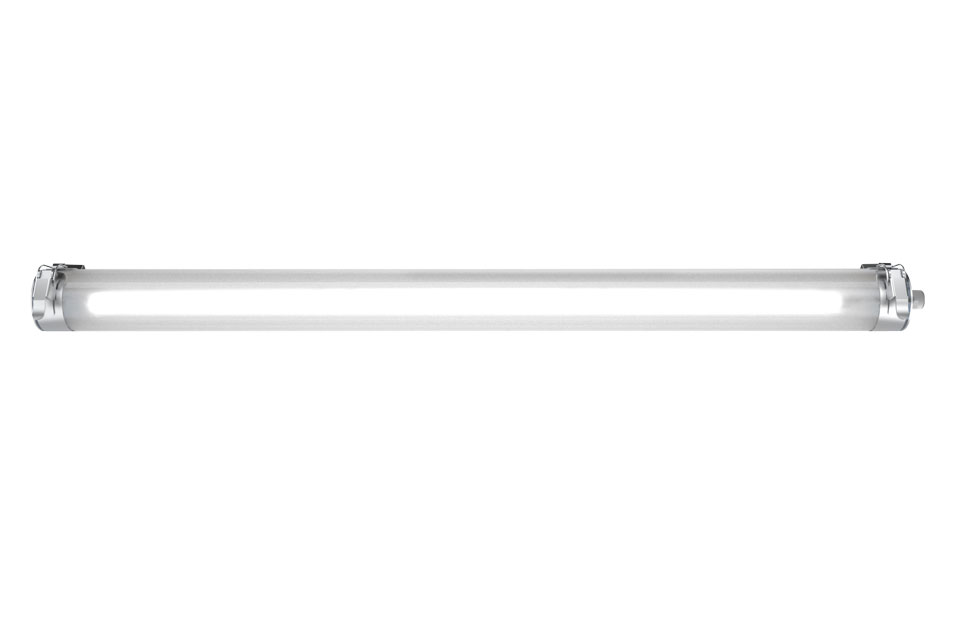

Tumo

LEDs

materials & finishes :

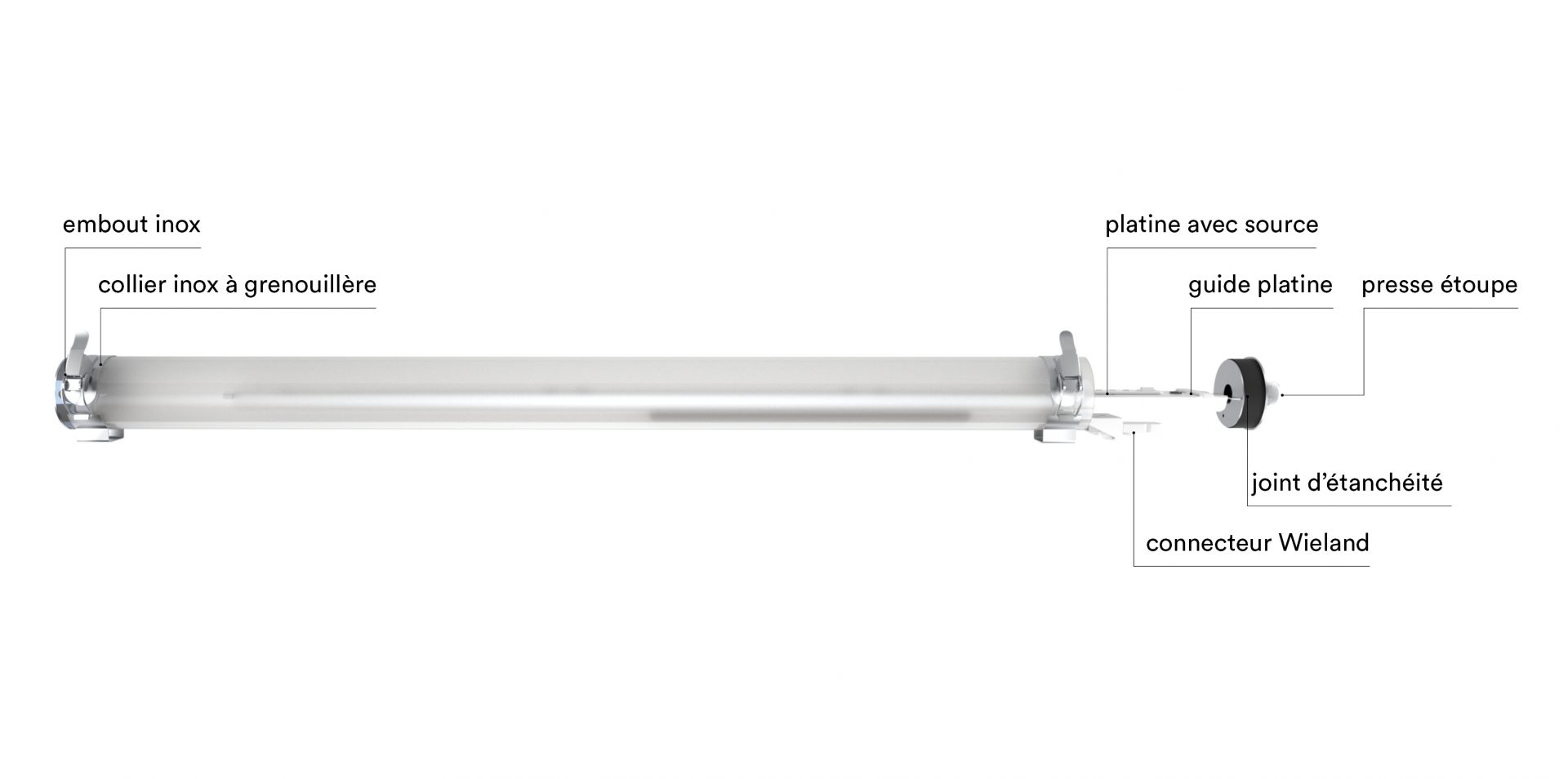

– body in anti-UV opal polycarbonate, diameter 70 mm with end caps in shiny 304L stainless steel
– white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by Wieland connector through a cable gland
fixation :
– by stainless steel toggle clamps on the polycarbonate body for variable center distance
color rendering index :
– CRI greater than 80
lifetime :
– 70 000 hours L80
LEDs :
– the LEDs used in our products are classified in group 0 : risk-free (presents no photobiological risk). SDMC = 3

Options

feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
transmission optics :
– clear sleeve with semi-opal diffuser (C0D1)
– clear sleeve with clear diffuser and prismatic optical film (C0D2)
reflection optics :
– wide symmetric reflector* (R1)
– wide asymmetrical reflector* (R2)
through wiring :
– crossing (TR)
pre-wiring :
– 1000 mm stripped (P-100)
– 200 mm with waterproof connectors (SP-20)
fixing clamps :
– latch with M6 inserts (F11)
– anti-vandal screw CHC stainless steel 304L (F2)
– vandal-proof TORX 304L screw (F10)
– marine version with CHC 316L screw (M1)
cell :
– motion detection* (CH)
electrical class :
– class II (E2)
specific options and accessories :
– plate, end caps and collars painted (RAL-1)
– White variation LED (TW)
Demander un devis
