Tulsa

LEDs

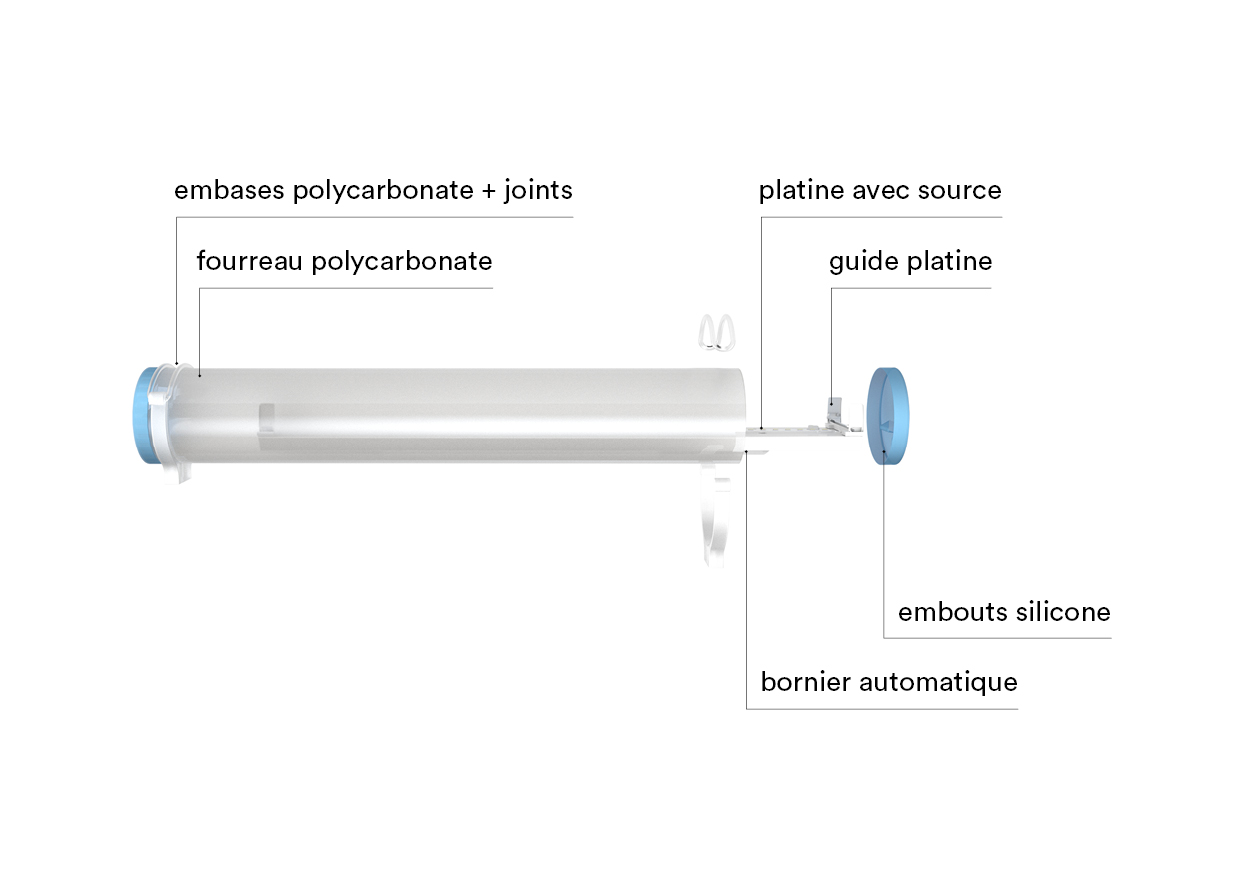

materials & finishes :
– 100 mm diameter anti-UV opal polycarbonate body with translucent silicone end caps and integrated cable gland
– white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block with cable clamp
fixation :
– on polycarbonate bases held by O-rings and clipped onto the body for a variable center distance
color rendering index :
– CRI greater than 80
lifetime :
– 70 000 hours L80
LEDs :
– the LEDs used in our products are classified in group 0 : risk-free (presents no photobiological risk). SDMC = 3

Options

feed :
– DALI (B4)
– BP with memory (B6)
– Programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
transmission optics :
– clear sleeve with semi-opal diffuser (C0D1)
reflection optics :
– Reflector sym. extensive* (R1)
– Asymmetrical reflector extensive* (R2)
through wiring :
– crossing (TR)
pre-wiring :
– 1000 mm stripped (P-100)
end caps :
– blue (BL)
– red (RG)
– yellow (JA)
– black (NR)
collar fixings :
– 304L stainless steel latch (F1)
– anti-vandal screw CHC stainless steel 304L (F2)
cell :
– motion detection** (CH)
electrical class :
– class II (E2)
specific options and accessories :
– driver cover at the back of the plate in shiny unpainted aluminum (A2-BRUT)
– White dimming LED*** (TW)
* Available with diffuser option D1 only.
** The total length of the luminaire is increased by 110 mm.
*** from 2700 to 6500 K.
