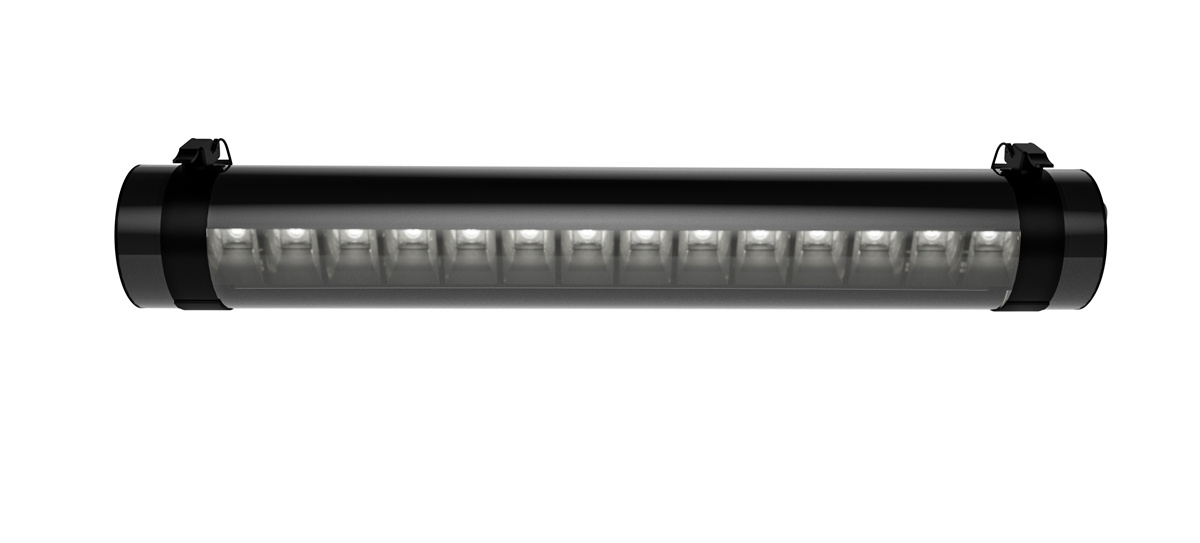

Tufo office

materials & finishes :
– body in clear anti-UV polycarbonate, 100 mm diameter with end caps and collars in black painted stainless steel
– plate in black painted sheet steel incorporating LED strips for direct lighting (optical lens and grid) and indirect lighting (optical “batwing” lens)
connection :

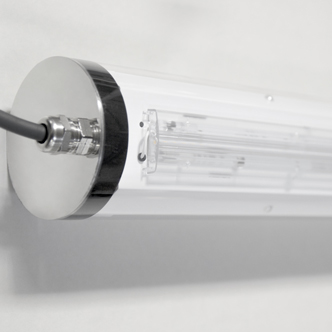

– by Wieland connector through a cable gland (H07 RNF cable diameter from 6 to 12 mm)
fixation :
– by stainless steel toggle clamps (painted black) on the polycarbonate body for variable center distance
color rendering index :
– CRI > 80
UGR :
– UGR<16
Lifetime :
– 70000 h L80
LEDs :
– The LEDs used in our products are classified in group 1: low risk (no photobiological risk under normal conditions of use). SDMC = 3
feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
reflection optics :
– direct lighting only (../0)
through wiring :
– crossing (TR)
pre-wiring :
– 1000 mm stripped (P-100)
– 200 mm with waterproof connectors (SP-20)
collar fixings :
– latch with M6 inserts (F11)
– anti-vandal screw CHC stainless steel 304L (F2)
– vandal-proof TORX stainless steel 304L (F10)
– marine version with CHC 316L screw (M1)
Cell :
– motion detection** (CH)
Electrical class :
– class II (E2)
Specific options :
– white finishes (optical grille and plate) (K036)
– driver cover behind the plate in unpainted aluminum*** (A2-BRUT)
– driver cover behind the plate in aluminum painted black RAL9005*** (A2-K015)
* Basic 80°.
** the total length of the lamp is increased by 110 mm.
*** available in direct lighting version only.
