Sladi

materials & finishes :

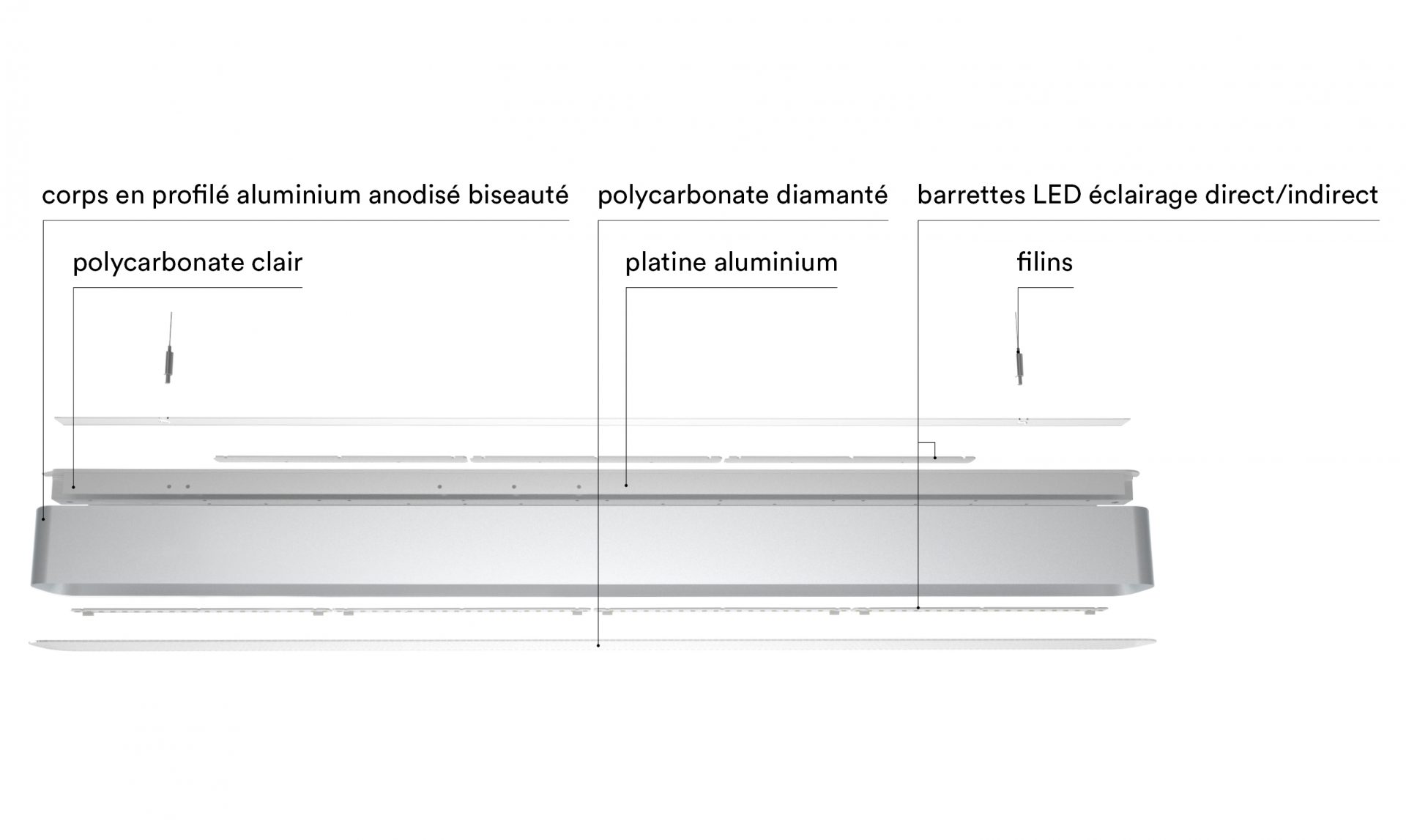

– body in bevelled anodized aluminum profile 96 x 85 mm curved, basin in diamond-cut polycarbonate below recessed by 15 mm
– aluminum plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block with cable clamp
fixation :

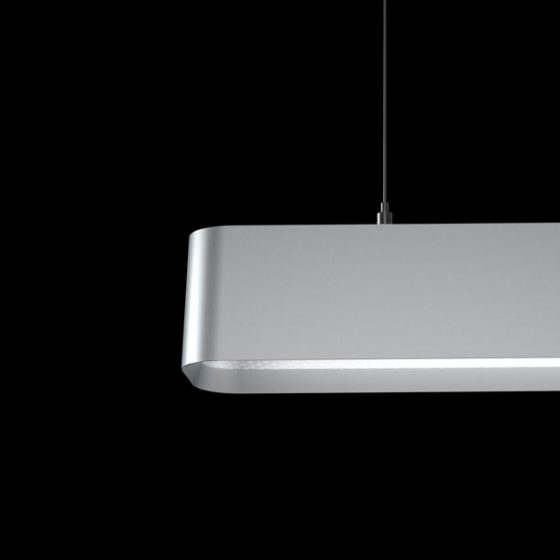

– luminaire suspended in two M6 threaded inserts by cables 2 meters long

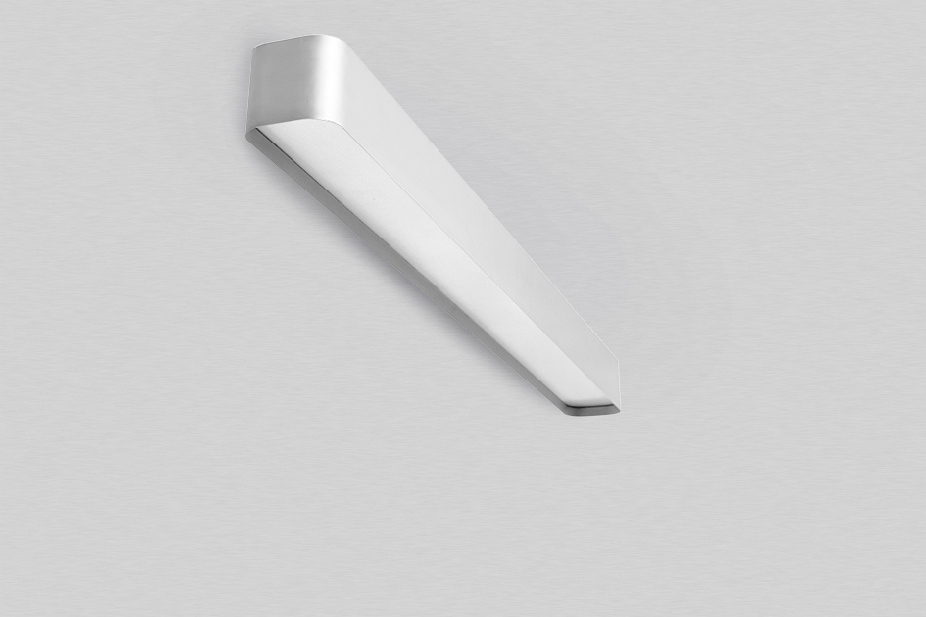

– wall-mounted version: two-point fixing by M4 screw at the back of the device
color rendering index :
– CRI greater than 80
lifetime :
– 70000 hours L80
LEDs :
– the LEDs used in our products are classified in group 0: risk-free (presents no photobiological risk). SDMC = 3
feed*** :
– DALI (B4)
– BP with memory (B6)
– Programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
optics :
– diamond-coated with opal diffuser**** (C1D)
– opal (C1)
lighting :
– direct/indirect (DI/IN)
wiring :
– crossing (TR)
cell :
– presence detection (CP)
– presence and brightness detection***** (CPI)
– presence detection and/or programmable brightness***** (CPD)
fixation :
– apply (APP)
electrical class :
– class II (E2)
specific options :
– dual ignition****** (DA)
– RAL color paint (RAL)
*** Added value for dimming to be counted twice if indirect lighting.
**** For point attenuation.
***** Dimming required.
****** Available in direct/indirect version only.
